TENS Machine for Labour – NeuroTrac Maternity TENS Unit

NeuroTrac Obstetric TENS; drug-free solution for pain relief during labour

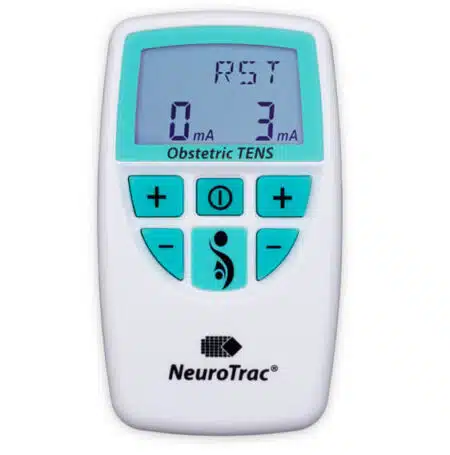

The NeuroTrac TENS machine for labour is an obstetric TENS machine that is a highly effective, drug-free solution for pain relief during labour.

Designed specifically for childbirth, this digital dual-channel TENS unit offers a non-invasive, easy-to-use method for reducing pelvic pain. With a dedicated labor pain program and an ergonomic remote boost switch, it provides instant relief during intense contractions, allowing the user to remain mobile and in control.

This compact, lightweight device is safe for both mother and baby, with no known side effects. Its advanced features, including a bright LCD display for easy visibility in low-light conditions, ensure optimal usability and comfort throughout labor.

Key Features: NeuroTrac TENS machine for labour

• Specifically Designed for Labor Pain Relief – Features a dedicated Labor Pain Program for easy, hassle-free use.
• Dual-Channel Digital TENS Unit – Provides targeted pain relief with individually isolated circuits.

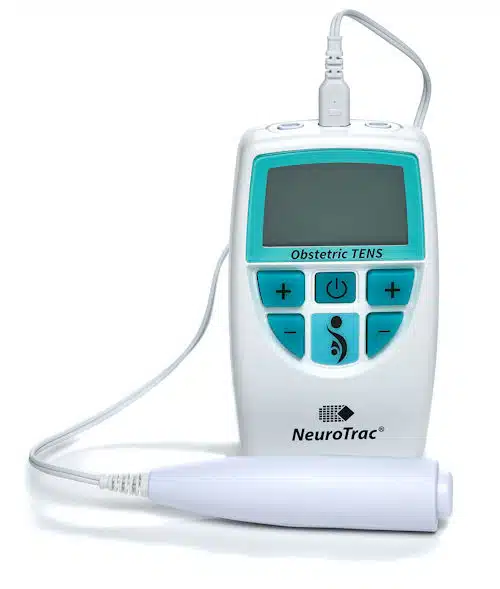

• Remote Boost Switch – Instantly increases pain relief during contractions with a simple press.
• Non-Invasive & Drug-Free – Safe, natural pain management without medications.
• Lightweight & Portable – Small, compact design allows free movement during labor.
• Backlit LCD Display – Bright screen ensures easy reading even in low-light or dark conditions.
• Large Keypad Buttons – Designed for effortless use, even under stress.
• Reliable & Long-Lasting – Durable build with low battery indicator and open electrode detection for safety.

Technical Specifications

• Channels: Dual-channel with individually isolated circuits
• Amplitude: 0-90 mA into 500 Ohm load (actual output varies based on electrode condition)
• Maximum Output Voltage: 180V (+10 / -30V)
• Waveform: Asymmetrical, rectangular, bi-phasic with zero DC current
• Pulse Width: 220μS (±2% accuracy)
• Pulse Rate: 90Hz (Continuous Mode)

Modes

• Continuous Mode (Boost Mode) – Provides uninterrupted stimulation for strong pain relief during contractions
• Burst Mode (Rest Mode) – Delivers pulsed bursts of 9 pulses at 150Hz, repeated twice per second, ideal for between contractions
  Ramp Up Time: 0.8 seconds (transition from Rest to Boost mode)
  Battery Indicator:
• Flashing Battery Symbol – Alerts when battery drops below 6.9V
• Auto Shut-off – If voltage falls below 6.6V, the unit will not turn on
  Safety Features:
• Open Electrode Detection – Resets output current to zero if an open circuit is detected
  Physical Dimensions: 108 x 62 x 23 mm

What’s Included?

• NeuroTrac Obstetric TENS Unit
• 9V Battery (for immediate use)
• 2 Lead Wires (connect electrodes to the unit)
• 1 Remote Boost Switch (for instant pain control)
• 1 Set of 4 Adhesive Electrodes (100×50 mm)
• User Manual (detailed instructions for use)
•  Soft Carry/Storage Case (for portability and convenience)
• 2-Year Warranty (for peace of mind)

Additional Benefits

• Effective for Menstrual & Pelvic Pain Relief – Also suitable for managing endometriosis and severe period cramps.
• Health Fund Rebate Available – Use tax invoice to claim reimbursement.
• Optional Accessories: Consider purchasing extra electrodes or an armband for secure placement while on the move.

The NeuroTrac Obstetric TENS Machine is one of the most trusted and widely recommended options for labor pain relief and pelvic pain management, providing safe, natural, and effective pain control during childbirth and beyond.

Please ensure you have a diagnosis from your medical practitioner and follow supplied instructions carefully.
